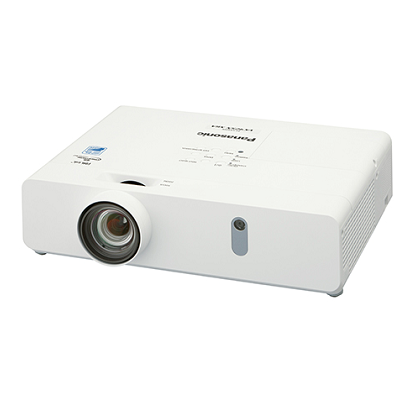

Panasonic PT-VX420
Coming Soon
Mô tả sản phẩmPower supply100-240 V AC, 50/60 HzPower consumption100-120 V: 310 W, 220-240 V AC: 290 W (0.4 W when Standby mode set to ECO*1, 1.3 W when Standby mode set to Network, 9 W when Standby mode set to Normal)LCD panelPanel size16.0 mm (0.63 in) diagonal (4:3 aspect...
Miễn phí vận chuyển
Giao hàng ngay (Tại TP. Hồ Chí Minh)
Đổi trả hàng trong 3 ngày thủ tục đơn giản
Chính sách bảo hành (Tại Hà Nội & TP. Hồ Chí Minh)
Chính sách Combo
Mô tả sản phẩm
Power supply | 100-240 V AC, 50/60 Hz | |
Power consumption | 100-120 V: 310 W, 220-240 V AC: 290 W (0.4 W when Standby mode set to ECO*1, 1.3 W when Standby mode set to Network, 9 W when Standby mode set to Normal) | |
LCD panel | Panel size | 16.0 mm (0.63 in) diagonal (4:3 aspect ratio) |
Display method | Transparent LCD panel (x 3, R/G/B) | |
Pixels | 786,432 (1024 x 768) pixels | |
Lens | Manual zoom (1.6x) (throw ratio: 1.2-1.9:1), manual focus, F 1.60-2.12, f 15.30-24.64 mm | |
Screen size (diagonal) | 0.76-7.62 m (30-300 in), 4:3 aspect ratio | |
Resolution | 1,024 x 768 pixels*3. | |
Brightness*2 | 4,500 lm (input signals: PC, lamp power: Normal, picture mode: Dynamic) | |
Lamp | Lamp | 230 W x 1 lamp (240 W driven) |
Lamp replacement cycle | 5,000 h/7,000 h (lamp power: Normal/Eco) | |
Center-to-corner uniformity*2 | 85% | |
Contrast*2 | 10,000:1 (Full On/Off) (input signals: PC, lamp power: Normal, picture mode: Dynamic, IRIS: On) | |
Scanning frequency | HDMI IN | fH: 15-80 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower |
RGB | fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 162 MHz or lower (Signals exceeding the dot clock rate of 140 MHz are downsampled.) | |
YPBPR(YCBCR) | fH: 15.75 kHz, fV: 59.94 Hz [525i (480i)] fH: 31.50 kHz, fV: 60 Hz [525p (480p)] fH: 45.00 kHz, fV: 60 Hz [750p (720)/60p] fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i] fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p] fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF] fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p] fH: 15.63 kHz, fV: 50 Hz [625i (576i)] fH: 31.25 kHz, fV: 50 Hz [625p (576p)] fH: 37.50 kHz, fV: 50 Hz [750p (720)/50p] fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i] fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p] fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p] fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p] | |
Video/S-Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N] | |
Optical axis shift | 9:1 (fixed) | |
Keystone correction range | Vertical | ±40 ° (±30 ° when using AUTO) (maximum value of XGA input) |
Horizontal | ±30 ° (maximum value of XGA input) | |
Installation | Ceiling/floor, front/rear | |
Terminals | HDMI IN | HDMI 19-pin x 1 (compatible with HDCP, Deep Color) 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/24sF, VGA (640 x 480)-WUXGA (1,920 x 1,200), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) | |
COMPUTER 2 IN / MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu) | |
VIDEO IN | Pin jack x 1 (Composite VIDEO) | |
S-VIDEO IN | Mini DIN 4-pin x 1 (S-VIDEO) | |
AUDIO IN 1 | M3 x 1 (L-R x 1) | |
AUDIO IN 2 (MIC IN) | M3 x 1 (L-R x 1) for audio input or for microphone connection (variable) | |
AUDIO IN 3 | Pin jack x 2 (L, R x 1) | |
AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | |
LAN | RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™) | |
SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
USB-Type A | – | |
USB-Type B | – | |
Built-in speaker | 4.0 cm (1-9/16 in ) round shape x 1, output power: 10.0 W (monaural) | |
Operation noise*2 | 37 dB (lamp power: Normal), 29 dB (lamp power: Eco) | |
Cabinet materials | Molded plastic (PC) | |
Dimensions (W x H x D) | 352 x 98*4 x 279.4*5 mm (13-27/32 x 3-27/32*4 x 11*5 in) | |
Weight*6 | Approx. 3.3 kg (7.3 lbs) | |
Operating temperature | 0-40 °C [32-104 °F] (less than 1,400 m [4,593 ft] above sea level, HIGH ALTITUDE MODE: OFF) | |
Operating humidity | 10-80 % (no condensation) | |
Wireless | Standard | – |
Infrastructure mode | – |
