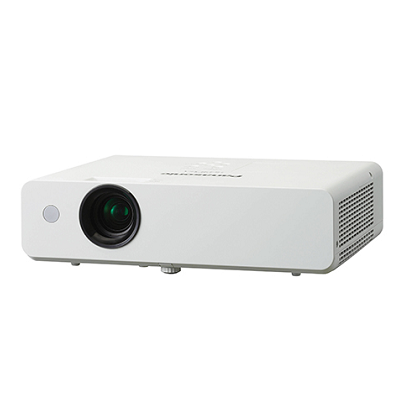

Panasonic PT-LB330

CÒN HÀNG

Giá 16,517,000₫

Mô tả sản phẩmPower supply100-240 V AC, 50/60 HzPower consumption300 W (0.5 W when STANDBY MODE set to ECO,*1 6 W when STANDBY MODE set to Normal.)LCD panelPanel size16 mm (0.63 in) diagonal (4:3 aspect ratio)Display methodTransparent LCD panel (x 3, R/G/B)Pixels786,432 (1,024 x 768) x 3, total of 2,359,296 pixelsLens1.2x...
Thiết Bị Nghe Nhìn Ân Nguyên

Miễn phí vận chuyển

Thiết Bị Nghe Nhìn Ân Nguyên

Giao hàng ngay (Tại TP. Hồ Chí Minh)

Thiết Bị Nghe Nhìn Ân Nguyên

Đổi trả hàng trong 3 ngày thủ tục đơn giản

Thiết Bị Nghe Nhìn Ân Nguyên

Chính sách bảo hành (Tại Hà Nội & TP. Hồ Chí Minh)

Thiết Bị Nghe Nhìn Ân Nguyên

Chính sách Combo

Mô tả sản phẩm

Power supply100-240 V AC, 50/60 Hz
Power consumption300 W
(0.5 W when STANDBY MODE set to ECO,*1 6 W when STANDBY MODE set to Normal.)
LCD panelPanel size16 mm (0.63 in) diagonal (4:3 aspect ratio)
Display methodTransparent LCD panel (x 3, R/G/B)
Pixels786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Lens1.2x manual zoom (throw ratio: 1.48-1.78:1), manual focus, F=1.6-1.76, f=19.16-23.02 mm
Lamp230 W x 1,
lamp replacement cycle (lamp control: Normal/Eco1/Eco2): 5,000 hours/6,000 hours/8,000 hours*2
Screen size (diagonal)0.76-7.62 m (30-300 in), 4:3 aspect ratio
Brightness*3
(Lamp control: Normal)
3,300 lm
Center-to-corner uniformity*380 %
Contrast*310,000:1 (full on/off)
(RGB signal input, Lamp control: Normal, Color mode: Dynamic, Iris: On)
Resolution1,024 x 768 pixels*4
Scanning frequencyHDMI INfH: 15-91 kHz, fV: 50-85 Hz, dot clock: 25 MHz-162 MHz
RGBfH: 15-91 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower
YPBPR(YCBCR)fH: 15.75 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/S-VideofH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N]
Optical axis shift6:1 (fixed)
Keystone correction rangeVertical±30°
Horizontal±15°
InstallationCeiling/floor, front/rear
TerminalsHDMI INHDMI 19-pin x 1 (compatible with HDCP, Deep Color)
480i*5, 480p, 576i*5, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i,
1080/25p, 1080/24p, 1080/24sF, 1080/30p,
1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200),*6
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER 1 IND-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR /S-VIDEO x 1)
(The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals.)
COMPUTER 2 IN/
MONITOR OUT
D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu)
VIDEO INPin jack x 1 (Composite VIDEO)
AUDIO 1 INM3 x 1 (L-R x 1)
AUDIO 2 INPin jack x 2 (L, R x 1)
AUDIO OUTM3 x 1 (L-R x 1) for output (variable)
SERIAL IND-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LANRJ-45 x 1
(for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)
USB AUSB type-A (for the Memory Viewer) x 1
USB BUSB type-B (for the USB Display) x 1
Built-in speaker10 W (monaural) x 1
Noise level*337 dB (lamp control: Normal), 33 dB (lamp control: Eco1), 28 dB (lamp control: Eco2)
Cabinet materialsMolded plastic (PC)
Dimensions (W x H x D)335 mm x 96 mm*7 x 252 mm (13-3/16 x 3-25/32*7 x 9-29/32 in)
Weight*8Approx. 2.8 kg (6.2 lbs)
Operating temperature5°C-40°C (41°F-104°F)
(less than 1,400 m [4,500 ft] above sea level),
5°C-35°C (41°F-95°F)
(between 1,400 m and 2,700 m [4,500 ft and 8,800 ft] above sea level)
Operating humidity20-80 % (no condensation)
Supplied accessoriesPower cord x 1*9,
Wireless remote control unit x 1,
Batteries (AAA/R03/LR03 type x 2),
Computer cable (1.5 m, for VGA) x 1,
Software CD-ROM (Multi Projecto48r Monitoring & Control Software)
NOTE*1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate.
Also, only certain commands can be received for external control using the serial terminal.
*2 The value for the recommended lamp replacement cycle is the maximum value, at which luminance will become 50 %.
The usage environment affects the duration of the lamp.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.
*5 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal).
*6 Compliant with VESA CVT-RB.
*7 With legs at shortest position.
*8 The above values are averages. Actual values may be different according to the product.
*9 Power cords available (x 2) for Asia model only.
