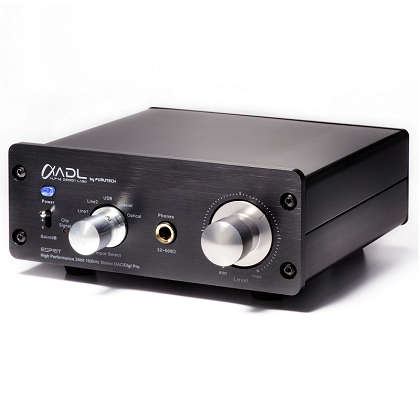

Tổng quan

24/192kHz Wolfson WM8716 DAC

24/192kHz Cirrus Logic CS5361 ADC converter with Multi-bit architecture at 114dB dynamic range

24/192kHz CIRRUS LOGIC CS8416 Digital Audio Interface Receiver with low-jitter clock recovery

24/96kHz Tenor TE7022L Hi-Q USB Audio Streaming Controller

Supports Asynchronous Mode and ASIO

Supports USB 2.0 Full Speed and USB Audio Class 1.0

2 isochronous input endpoints for recording, 2 isochronous output endpoints for playback, and 1 interrupt endpoint for HID

Supports 32/44.1/48/96kHz sampling rates

I²S bus separates clock and data signals for very low jitter connections

Supports 2 input and 2 output channels with one I²S pair with independent sampling rates

Optical output functions with USB sources only

Output S/PDIF signals support digital surround multichannel formats like AC3 and DTS

Thông số kỹ thuật

• USB/Analog Playback/Multimedia Recording
• Connectivity: USB-B Interface, analog input/output on RCA jacks, optical Toslink input and coaxial input RCA connectors, output Toslink connector (USB output only)
• USB Playback Resolution 24-bit/96kHz (Max)
• USB Recording Resolution: 16-to-24 bits, Sampling Rate: 32/44.1/48/96kHz
• Coaxial and Optical Playback Resolution: 24-bit/192KHz (Max)
• Frequency response: 20Hz ~ 20kHz (±0.5 dB)
• S/N ratio: -95dB (A-wtd) / Line Output
• Max. Line Output Level: 7.5 VRMS (THD <1%) Line Output impedance : 100 ohms
• THD: Line Input < 0.01% , Digital Input <0.05%
• Headphone Max. Output Level: 1% THD 1kHz, 156mW (16 ohms), 224mW (32 ohms), 241mW (56 ohms), 130mW (300 ohms), 76mW (600 ohms)
• Power supply-1: 5V DC from USB bus-powered USB chip – optical output only
• Power supply-2: ErP Step2 Compliant, 2-wire AC, Class II, AC/DC Switching Adaptor
• DC 15V / 0.8A / 12W
• Dimensions: 150mm / 6″ (w) x 141mm / 5.5″ (d) x 57mm / 2.25″ (h)
• Weight: ~ 970g / 2.14lbs
