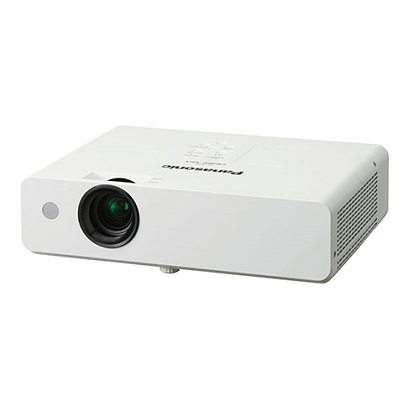

panasonic-pt-lb360
Coming Soon
Mô tả sản phẩmPower supply100-240 V AC, 50/60 HzPower consumption300 W (0.5 W when STANDBY MODE set to ECO,*1 6 W when STANDBY MODE set to Normal.)LCD panelPanel size16 mm (0.63 in) diagonal (4:3 aspect ratio)Display methodTransparent LCD panel (x 3, R/G/B)Pixels786,432 (1,024 x 768) x 3, total of 2,359,296 pixelsLens1.2x...
Miễn phí vận chuyển
Giao hàng ngay (Tại TP. Hồ Chí Minh)
Đổi trả hàng trong 3 ngày thủ tục đơn giản
Chính sách bảo hành (Tại Hà Nội & TP. Hồ Chí Minh)
Chính sách Combo
Mô tả sản phẩm
| Power supply | 100-240 V AC, 50/60 Hz | |
| Power consumption | 300 W (0.5 W when STANDBY MODE set to ECO,*1 6 W when STANDBY MODE set to Normal.) | |
| LCD panel | Panel size | 16 mm (0.63 in) diagonal (4:3 aspect ratio) |
| Display method | Transparent LCD panel (x 3, R/G/B) | |
| Pixels | 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels | |
| Lens | 1.2x manual zoom (throw ratio: 1.48-1.78:1), manual focus, F=1.6-1.76, f=19.16-23.02 mm | |
| Lamp | 230 W x 1, lamp replacement cycle (lamp control: Normal/Eco1/Eco2): 5,000 hours/6,000 hours/8,000 hours*2 | |
| Screen size (diagonal) | 0.76-7.62 m (30-300 in), 4:3 aspect ratio | |
| Brightness*3 (Lamp control: Normal) | 3,700 lm | |
| Center-to-corner uniformity*3 | 80 % | |
| Contrast*3 | 10,000:1 (full on/off) (RGB signal input, Lamp control: Normal, Color mode: Dynamic, Iris: On) | |
| Resolution | 1,024 x 768 pixels*4 | |
| Scanning frequency | HDMI IN | fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 25 MHz-162 MHz |
| RGB | fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower | |
| YPBPR(YCBCR) | fH: 15.75 kHz, fV: 59.94 Hz [480i (525i)] fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)] fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] | |
| Video/S-Video | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N] | |
| Optical axis shift | 6:1 (fixed) | |
| Keystone correction range | Vertical | ±30° |
| Horizontal | ±15° | |
| Installation | Ceiling/floor, front/rear | |
| Terminals | HDMI IN | HDMI 19-pin x 1 (compatible with HDCP, Deep Color) 480i*5, 480p, 576i*5, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200),*6 audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR /S-VIDEO x 1) (The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals.) | |
| COMPUTER 2 IN/ MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu) | |
| VIDEO IN | Pin jack x 1 (Composite VIDEO) | |
| AUDIO 1 IN | M3 x 1 (L-R x 1) | |
| AUDIO 2 IN | Pin jack x 2 (L, R x 1) | |
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| LAN | RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™) | |
| USB A | USB type-A (for the Memory Viewer) x 1 | |
| USB B | USB type-B (for the USB Display) x 1 | |
| Built-in speaker | 10 W (monaural) x 1 | |
| Noise level*3 | 37 dB (lamp control: Normal), 33 dB (lamp control: Eco1), 28 dB (lamp control: Eco2) | |
| Cabinet materials | Molded plastic (PC) | |
| Dimensions (W x H x D) | 335 mm x 96 mm*7 x 252 mm (13-3/16 x 3-25/32*7 x 9-29/32 in) | |
| Weight*8 | Approx. 2.8 kg (6.2 lbs) | |
| Operating temperature | 5°C-40°C (41°F-104°F) (less than 1,400 m [4,500 ft] above sea level), 5°C-35°C (41°F-95°F) (between 1,400 m and 2,700 m [4,500 ft and 8,800 ft] above sea level) | |
| Operating humidity | 20-80 % (no condensation) | |
| Supplied accessories | Power cord x 1*9, Wireless remote control unit x 1, Batteries (AAA/R03/LR03 type x 2), Computer cable (1.5 m, for VGA) x 1, Software CD-ROM (Multi Projector Monitoring & Control Software) | |
| NOTE | *1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for external control using the serial terminal. *2 The value for the recommended lamp replacement cycle is the maximum value, at which luminance will become 50 %. The usage environment affects the duration of the lamp. *3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *4 Input signals that exceed this resolution will be converted to 1,024 x 768 pixels. *5 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal). *6 Compliant with VESA CVT-RB. *7 With legs at shortest position. *8 The above values are averages. Actual values may be different according to the product. *9 Power cords available (x 2) for Asia model only. | |
