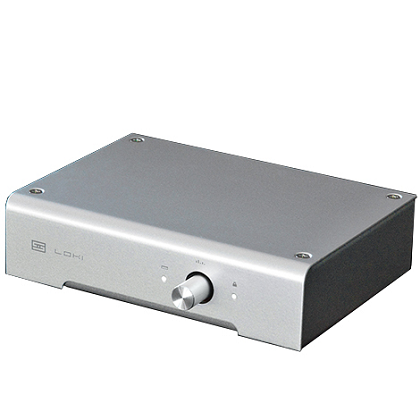

Schiit Loki

Coming Soon

Mô tả sản phẩm Tổng quan ​DSD Only When You Need It With Loki, you’ll instantly get DSD64 decoding from PC and Mac USB sources. But it also integrates with any DAC. Push the front-panel button, and Loki seamlessly passes through the output of your current DAC, untouched, so you can listen to...
Thiết Bị Nghe Nhìn Ân Nguyên

Miễn phí vận chuyển

Thiết Bị Nghe Nhìn Ân Nguyên

Giao hàng ngay (Tại TP. Hồ Chí Minh)

Thiết Bị Nghe Nhìn Ân Nguyên

Đổi trả hàng trong 3 ngày thủ tục đơn giản

Thiết Bị Nghe Nhìn Ân Nguyên

Chính sách bảo hành (Tại Hà Nội & TP. Hồ Chí Minh)

Thiết Bị Nghe Nhìn Ân Nguyên

Chính sách Combo

Mô tả sản phẩm

Tổng quan

DSD Only When You Need It
With Loki, you’ll instantly get DSD64 decoding from PC and Mac USB sources. But it also integrates with any DAC. Push the front-panel button, and Loki seamlessly passes through the output of your current DAC, untouched, so you can listen to all your other digital music.

A DSD-Optimized Design
Because Loki is a DSD-dedicated design, with no PCM decoding, we were able to optimize the output stage and filtering to the unique requirements of DSD. The result is cleaner output, from a stage that isn’t compromised to try to accommodate both DSD and other digital sources. Compare it to megabuck DSD DACs that also do PCM—and you might be very surprised!

The Right Path to an Uncertain Future
DSD is the buzzword right now. Some of us also remember when SACD, HDCD, DAT, reel-to-reel, ELcassette, and quadraphonic were the “next big thing” on the audiophile scene. There’s a very real possibility DSD will go the way of the dodo. Loki allows you to try DSD at a very low price, and decide if it’s for you—without throwing away your current DAC. If DSD succeeds, cool! If it doesn’t, you’re not out big bucks.

Made in USA
By “made in USA,” we mean made in USA. The vast majority of the total production cost of Loki—chassis, boards, assembly, etc—goes to US companies manufacturing in the US. Our board house is 20 minutes away from our office in Newhall. Our chassis guys are just over the hill in the Valley.

Thông số kỹ thuật

 Frequency Response 20Hz-20Khz, +/-0.3db, 2Hz-200KHz, -3dB
 THD <0.005%, 20Hz-20KHz, at 1V RMS
 IMD <0.007%, CCIR
 SNR >100db, unweighted, referenced to 1V RMS
 Crosstalk >-70dB, 20 Hz-20KHz
 Output Impedance 75 ohms
 USB DOP Input Receiver C-Media CM6631A
 DOP to DSD Decoding proprietary Schiit code implemented on 32-bit Microchip processor
 D/A Conversion AKM4396, in native DSD mode
 DSD capability DSD64
 Analog Topology based on AD8616 with DSD-specific filtering
 Power Supply USB bus powered with significant decoupling, post-regulation, and isolation used throughout
 Power Consumption 100mA, 5V
 Size 5 x 3.5 x 1.25”
 Weight 1 lb
