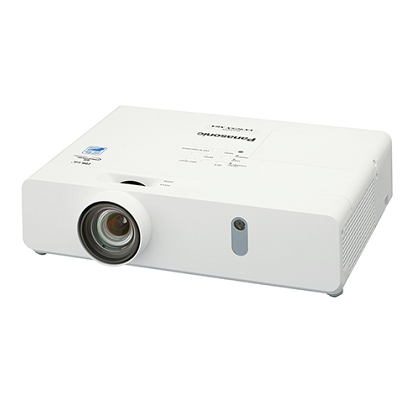

Panasonic PT-VX420

Coming Soon

Mô tả sản phẩmPower supply100-240 V AC, 50/60 HzPower consumption100-120 V: 310 W, 220-240 V AC: 290 W (0.4 W when Standby mode set to ECO*1, 1.3 W when Standby mode set to Network, 9 W when Standby mode set to Normal)LCD panelPanel size16.0 mm (0.63 in) diagonal (4:3 aspect...
Thiết Bị Nghe Nhìn Ân Nguyên

Miễn phí vận chuyển

Thiết Bị Nghe Nhìn Ân Nguyên

Giao hàng ngay (Tại TP. Hồ Chí Minh)

Thiết Bị Nghe Nhìn Ân Nguyên

Đổi trả hàng trong 3 ngày thủ tục đơn giản

Thiết Bị Nghe Nhìn Ân Nguyên

Chính sách bảo hành (Tại Hà Nội & TP. Hồ Chí Minh)

Thiết Bị Nghe Nhìn Ân Nguyên

Chính sách Combo

Mô tả sản phẩm

Power supply100-240 V AC, 50/60 Hz
Power consumption100-120 V: 310 W, 220-240 V AC: 290 W
(0.4 W when Standby mode set to ECO*1,
1.3 W when Standby mode set to Network,
9 W when Standby mode set to Normal)
LCD panelPanel size16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
Display methodTransparent LCD panel (x 3, R/G/B)
Pixels786,432 (1024 x 768) pixels
LensManual zoom (1.6x) (throw ratio: 1.2-1.9:1), manual focus, F 1.60-2.12, f 15.30-24.64 mm
Screen size (diagonal)0.76-7.62 m (30-300 in), 4:3 aspect ratio
Resolution1,024 x 768 pixels*3.
Brightness*24,500 lm (input signals: PC, lamp power: Normal, picture mode: Dynamic)
LampLamp230 W x 1 lamp (240 W driven)
Lamp replacement cycle5,000 h/7,000 h (lamp power: Normal/Eco)
Center-to-corner uniformity*285%
Contrast*210,000:1 (Full On/Off) (input signals: PC, lamp power: Normal, picture mode: Dynamic, IRIS: On)
Scanning frequencyHDMI INfH: 15-80 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower
RGBfH: 15-100 kHz, fV: 50-100 Hz, dot clock: 162 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)
YPBPR(YCBCR)fH: 15.75 kHz, fV: 59.94 Hz [525i (480i)]
fH: 31.50 kHz, fV: 60 Hz [525p (480p)]
fH: 45.00 kHz, fV: 60 Hz [750p (720)/60p]
fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i]
fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p]
fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p]
fH: 15.63 kHz, fV: 50 Hz [625i (576i)]
fH: 31.25 kHz, fV: 50 Hz [625p (576p)]
fH: 37.50 kHz, fV: 50 Hz [750p (720)/50p]
fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i]
fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p]
fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p]
fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p]
Video/S-VideofH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N]
Optical axis shift9:1 (fixed)
Keystone correction rangeVertical±40 ° (±30 ° when using AUTO)
(maximum value of XGA input)
Horizontal±30 ° (maximum value of XGA input)
InstallationCeiling/floor, front/rear
TerminalsHDMI INHDMI 19-pin x 1 (compatible with HDCP, Deep Color)
480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i,
1080/60p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/24sF,
VGA (640 x 480)-WUXGA (1,920 x 1,200),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER 1 IND-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
COMPUTER 2 IN / MONITOR OUTD-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu)
VIDEO INPin jack x 1 (Composite VIDEO)
S-VIDEO INMini DIN 4-pin x 1 (S-VIDEO)
AUDIO IN 1M3 x 1 (L-R x 1)
AUDIO IN 2 (MIC IN)M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
AUDIO IN 3Pin jack x 2 (L, R x 1)
AUDIO OUTM3 x 1 (L-R x 1) for output (variable)
LANRJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)
SERIAL IND-sub 9-pin (female) x 1 for external control (RS-232C compliant)
USB-Type A
USB-Type B
Built-in speaker4.0 cm (1-9/16 in ) round shape x 1, output power: 10.0 W (monaural)
Operation noise*237 dB (lamp power: Normal), 29 dB (lamp power: Eco)
Cabinet materialsMolded plastic (PC)
Dimensions (W x H x D)352 x 98*4 x 279.4*5 mm (13-27/32 x 3-27/32*4 x 11*5 in)
Weight*6Approx. 3.3 kg (7.3 lbs)
Operating temperature0-40 °C [32-104 °F] (less than 1,400 m [4,593 ft] above sea level, HIGH ALTITUDE MODE: OFF)
Operating humidity10-80 % (no condensation)
WirelessStandard
Infrastructure mode
